61ST
FIGHTER SQUADRON, 56TH FIGHTER GROUP - U.S.
ARMY AIR FORCE
BOXTED,
ENGLAND - MARCH 15, 1944 - CAPTAIN
ROBERT S. JOHNSON
History
of the aircraft modeled:
Continuing
the line of fighters begun in 1935 with the Seversky P-35, Alexander Kartveli
and his design team began work in 1939 on a straight development of the P-43
designed to use the new Pratt & Whitney R-2800 radial engine. Due to the air
war being fought in Europe Kartveli offered a redesign of the XP-47 at almost
twice the gross weight, with an eight-gun armament, and a turbo-supercharged
Pratt & Whitney XR-2800 Double Wasp engine.
In
September 1940 Republic received contracts for one XP-47A and 773 production
P-47Bs and Cs. The new aircraft was the largest single-engine fighter then
designed, with a 2,000 hp R-2800-21 radial and eight .50-inch machine guns in
the wings, which still retained the semi-elliptical planform favored by Kartveli.
First flown on May 6, 1941, the XP-47B had a top speed of 412 mph and despite
some doubts about the aircraft's handling qualities, particularly at low
altitudes, the Thunderbolt became top priority for the USAAF.
By
the end of 1942, two fighter groups were equipped with the P-47B. Moving to
Europe in 1943, they joined the Eighth Air Force in its assault on Occupied
Europe, going into action on April 8, 1943. Early operations revealed some
drawbacks, in particularly, the range was inadequate for bomber escort duties
and maneuverability was poor. These factors were somewhat improved with the
introduction of the P-47C, which carried provision for an external fuel tank
under the belly and a lengthened fuselage that slightly improved
maneuverability. This model was operating in Europe by mid-1943 and in the
Mediterranean theater by November. P-47Cs became operational in the Southwest
Pacific in June 1943 and China in April 1944.
Early
model P-47Ds, powered by an improved R-2800-59 engine rated at 2300 hp, were
similar to the P-47C in most respects. Strengthening of the wing permitted the
carriage of fuel tanks or bombs and the D model began to demonstrate its
outstanding characteristics as a fighter-bomber as well as bomber escort towards
the end of 1943.
Additional
production lines for the Thunderbolt were laid down by Republic in Evansville,
Indiana and by Curtiss in Buffalo, New York. Production of versions up to the
P-47D-22 totalled 3962 at Farmingdale, Long Island, and 1461 at Evansville,
while Curtiss built 354 similar P-47Gs. Production then switched to the P-47D-25
and later versions, with a bubble canopy and cut-down rear fuselage for improved
vision and more internal fuel. Farmingdale produced 2547 D-25s and Evansville
4632.
The
P-47M incorporated a 2800 hp R-2800-57 engine, a lightweight wing and reduced
armament in a standard P-47D airframe. The 130 built were assigned to England
primarily to combat the V-1 flying-bomb. A purely experimental version of the
P-47M, coded P-47J, utilizing the same engine with fan-assisted cooling,
achieved 504 mph in official tests. This was the highest speed ever reached by a
piston-engined aircraft in level flight during World War II.
The
last version to leave the Republic assembly plants was the P-47N, the heaviest
of all Thunderbolts, at 20,450 pounds. It had the R-2800-57 engine and a larger,
stronger wing, which could carry four drop tanks. Added to the internal fuel
tanks, these gave an endurance of more than nine hours. The 1000-mile radius of
action of the P-47N was intended for bomber-escort duties in the Pacific and
1667 were delivered from Farmingdale plus 149 from Evansville.
The
grand total of 15,660 Thunderbolts was the largest number of any single fighter
type ever acquired by the USAAF. Approximately two-thirds of these found their
way into action with the USAAF. The combat loss of less than one percent was
exceptionally low, reflecting the Thunderbolt's rugged construction, which
allowed it to survive battle damage that other fighter aircraft of the period
would not handle. The "Jug" was a beloved aircraft by the pilots that
flew it and served with distinction in the Air National Guard, as well as the
air forces of France, Italy, Nationalist China, and South American countries,
after being replaced by jet-fighters following the end of World War II.
ABOUT
THE AIRCRAFT MODELED:
Captain
Robert S. Johnson was second to Colonel Francis Gabreski as the top scoring
American ace in the European Theater of Operations with 28 confirmed victories.
His first victory came on his eleventh mission on June 13, 1943 and his final
victories were attained on May 8, 1944, his 91st combat mission. All of his
victories came while flying several razorback 'Jugs' with the 61st Fighter
Squadron of the 56th Fighter Group.

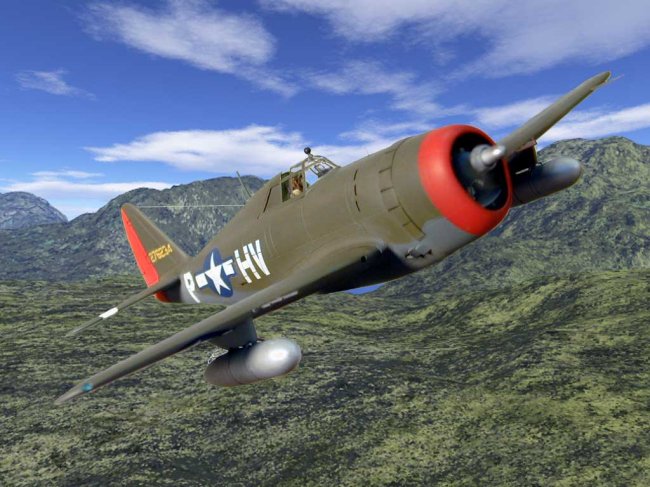

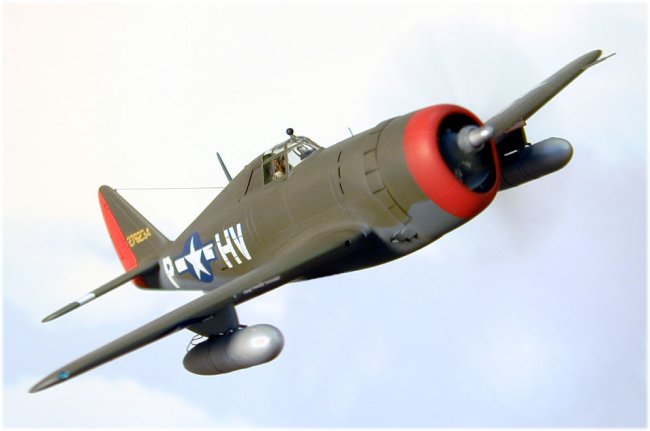

I
had the pleasure and privilege of meeting Captain Johnson in March 1992 at a
model contest in Charlotte, North Carolina. Upon further correspondence with
this fine gentleman, I decided to model his last razorback 'Jug' as it appeared
on March 15, 1944, a day in which Captain Johnson scored three combat kills
(two Focke-Wulf Fw-190s and one Messerschmitt Bf-109) over Brunswick (Braunschweig
in Germany) on an escort mission to Berlin. He had nineteen victories prior to
these kills. If I recall correctly, this was the 'Jug' he was flying the day the
Luftwaffe pilot couldn't shoot him down and flew alongside, saluted, and banked
for home.
I
used Hasegawa's kit of the P-47D Razorback in 1/72nd scale, kit number 507.
Decals came from a Special Edition reissue of Airfix's P-47D, kit number 02084.
NOTES
ON THE ASSEMBLY
Cockpit:
The
cockpit to this kit is rather spartan by even Hasegawa's standards, consisting
of a seat molded into the cockpit floor and an instrument panel placard. I first
extended the cockpit floor with sheet plastic and added a control stick
constructed from 18-gauge wire.
I
then constructed rudder pedals from 26-gauge wire and sheet plastic and cemented
these to the rear of the instrument panel placard. I then turned my attention to
the sidewalls and constructed ribbing from evergreen styrene strips.
A
throttle control was scratch-built out of a Waldron-punched disk that I cut in
half and added two small pieces of 26-gauge wire, which were dipped into epoxy
for the knob ends. This assembly was then cemented to the port sidewall. I also
constructed radio boxes and trim tab controls from sheet plastic and attached
these units to the starboard and port walls respectively.
The
gunsight was scratch-built using a Waldron-punched disk attached to a like-sized
square of sheet plastic and this in turn attached to the instrument panel shroud
after the fuselage halves were joined and sanded. The clear reflector was cut
from 0.01-in clear styrene and attached after painting the gunsight and panel
shroud.
The
pilot, though well molded, had a huge sinkhole in his belly that had to be
filled and resculptured. I also added a parachute pack, constructed of sheet
styrene and epoxy, to his back as per photocopies I received from Captain
Johnson and constructed a parachute harness from small strips of masking tape.
Two radio earphone covers were constructed from Waldron-punched disks and
cemented to the pilot's leather headpiece. The goggle's strap was simulated with
a small strip of masking tape. Lastly I added a shoulder harness from masking
tape after the pilot figure was painted and cemented to his seat. Buckles were
cut from a used Waldron photoetched sheet that I had on hand and glued to the
harness.
Fuselage
and Wings:
I
added a wiring harness made out of 18-gauge wire to the back of the engine gear
reduction housing. I also constructed two magnetos out of Waldron-punched disks
and a propeller governor out of sheet styrene. Fuel and oil lines were
duplicated from small gauge wire stock.
A
one inch section of 3/32nds-inch brass tubing was attached to the center hole in
the engine assembly to accommodate a one inch section of 1/16th-inch
tubing that was attached to the propeller. This allowed me to hold off attaching
the propeller until final assembly. The propeller will also spin in the
slightest breeze.
The
antenna that was molded into the port fuselage half was cut away and saved for
reattachment during the final assembly. This allowed me to clean up the joint
seam without having to work around it.
I
opened up the exhaust waste gates on each side of the fuselage just behind the
engine cowling and attached a section of 20-gauge hypodermic needle to each
opening. I also attached a small section of 26-gauge hypodermic needle into a
predrilled hole behind the antenna and slightly starboard for the aerial
lead-in.
The
rear wheel door cover was left as is and cemented into the wheel housing using a
shim on the front to align it to the fuselage. I then scribed the split with a
#11 X-Acto blade and dentist's scraping probe. (This was much easier than
cutting the piece into and having to cement both halves into the housing.)
The
forward gunsight bead was made out of .005 stainless steel wire and super glued
into a predrilled hole. The aerial attachment on the vertical tail was
constructed from 34-gauge wire that had been tightly wrapped around a #80 drill
bit and attached into a predrilled hole. The aerial was made from smoke-colored
invisible thread and attached after painting and decaling.
The
canopy was masked with Bare-metal foil and attached with white glue. I also
attached a small amount of super glue at strategic points, so that the canopy
would not pull off when I removed the masking. Captain Johnson's plane had the
Spitfire rear-view mirror that was field rigged to many Thunderbolts. I
duplicated this with a Waldron-punched disk and a drop of epoxy for the
curvature. This was attached to the canopy after painting and decaling.
All
wing machine guns were cut off and replaced with sections of 23-gauge hypodermic
needle cut with a Dremel fiber-cutting wheel into the various lengths required
and super glued into predrilled holes where the molded guns were. The pitot tube
was likewise cut away (This also aided in sanding the wing joints) and replaced
with an insulin hypodermic needle cemented into a 25-gauge hypodermic needle and
then cemented into a predrilled hole after the joints were sanded.
Wing
navigation lights were filed away and replaced with epoxy after final painting.
The small antenna under the port wing was made from 0.005 stainless steel wire
and super glued into a predrilled hole. I constructed the landing light under
the port wing from a Waldron-punched disk of Bare-metal foil that was coated
with epoxy; this was attached after final painting.
Fuel
tank/bomb shackles were cut from 22-gauge wire and attached to the hardpoints
already molded into the wings. The fuel tank feed lines were constructed from
28-gauge wire and cemented into predrilled holes. The main landing gear doors
were cut and attached in the retracted position using shims to align them to the
underside of the wing.
Painting
and Decaling:
The
interior was painted Model Master Acrylic Zinc Chromate Green, with radio boxes,
trims control boxes, and throttle control being hand painted flat black. All
ribbing was given a light black wash.
The
instrument panel placard was painted gloss black and the kit decal applied.
After the decal had dried I coated the placard with clear flat acrylic and then
applied Johnson's FUTURE to the gauges after the flat coat had dried.
The
instrument panel shroud was painted flat black and the area in back of the
cockpit that was covered by the canopy was painted olive drab. The headrest was
hand brushed with Tamiya Red Brown.
The
pilot was first primed with neutral gray and then hand painted using Tamiya and
Model Master acrylics. After painting I added the parachute and harnesses and
gave the figure a dark gray wash.
The
engine assemblies were first painted neutral gray also. I hand painted the
engine cylinders Polly-S Flat Oxidized Aluminum Acrylic and the pushrods in
gloss black. The magnetos and the propeller governor were also painted gloss
black, after which I gave all engine cylinders a black wash. The back of the
rear bank of cylinders was hand painted flat black in between the cylinders, as
was the inside of the engine cowling cover.
The
propeller tips were painted insignia yellow, after which they were masked and
airbrushed semi-gloss black. The blades were then masked and the spinner was
airbrushed with Model Masters Buffing Aluminum and buffed lightly.
External
fuel tanks were airbrushed with Polly-S Flat Aluminum Acrylic and given a black
wash around their retaining straps. The hypodermic needle machine guns were left
unpainted, but given a coat of clear flat in the final painting.
The
cowling opening was covered with a styrene mask and the entire aircraft was
airbrushed with Model Master Dark Gull Gray that I had mixed to match FS 36173.
This was the correct color for the underside of the aircraft and served as a
primer for the entire model.
After
the primer had dried I lightly sanded any imperfections and reprimed. A day
later I masked the lower surfaces and airbrushed the upper surfaces with Model
Master Olive Drab.
The
cowling and rudder were masked after this had dried and airbrushed Testors Flat
White. A day later this was airbrushed with Model Masters Insignia Red. (If the
white isn't applied first, you will get too dark of a red color.)
I
allowed this to dry for four days and then dry sanded the entire model with well
used 3600 grit sandpaper. The model was then washed with a mild solution of
dishwashing detergent followed by a washing of plain water. This technique
glossed the flat paint and allowed me to decal the model without having to spray
a gloss overcoat.
Decals
from the aforementioned Airfix kit were applied using the micro-scale system. I
found that Micro-Sol would not work on the Airfix decals and used Micro-Set
only. The decals were very thin and had to be forced into the small recessed
panel lines by pressing with a dampened paper towel after they had set, but
before they had dried completely. The white stripes on the horizontal tail
planes were cut from SuperScale White Trim sheet and applied using the
micro-system.
After
the decals had dried, I picked out the cowl flaps, ailerons, elevators, rudder,
trim tabs, machine guns shell ejector ports, and other openings with a 5-0
technical pen. Waste gate exhaust stains were dry brushed with powered black
powdered pastel. The entire model was then airbrushed with Polly-S Clear Flat
Acrylic.
The
wing navigation light cutouts were painted Model Masters Chrome Silver, filled
with epoxy, and painted clear red on the port wing and clear green on the
starboard wing. The navigation light on the rudder was painted chrome silver and
given a drop of epoxy. The formation light on top of the fuselage was duplicated
with a Waldron-punched disk of Bare-metal foil followed by a drop of epoxy. The
rear-view mirror was brush painted flat black and the front of the mirror was
painted chrome silver and given a coating of Johnson's FUTURE.
References:
Bodie,
Warren M., WINGS Special Edition No. 1, THE DESIGN AND COMBAT HISTORY OF
REPUBLIC'S LEGENDARY WORLD WAR TWO FIGHTER-THE P-47 "JUG", Sentry
Books Inc., 10718 White Oak Ave., Granada Hills, CA 91344, 1981.
COMBAT
AIRCRAFT OF THE WORLD,
George Rainbird Ltd., Marble Arch House, 44 Edgeware Rd., London, W2, United
Kingdom, 1969.
Gunston,
Bill, The Encyclopedia of the World's COMBAT AIRCRAFT, Salamander Books
Ltd., 52 James St., London, W1, United Kingdom, 1976.
I
would like to give my gratitude to Captain Robert S. Johnson, USAAF retired, for
sharing his time with me in Charlotte
and sending me some photocopy photos in 1994 for the model depicted here.
Without his assistance and cooperation, I could not have done justice to this
venture.
Caz
|
