1/48 Suchoi Su-34 Part 1

by Armin Knes

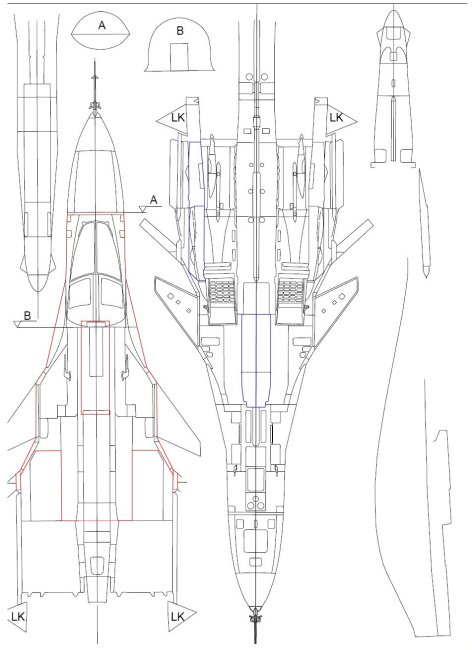

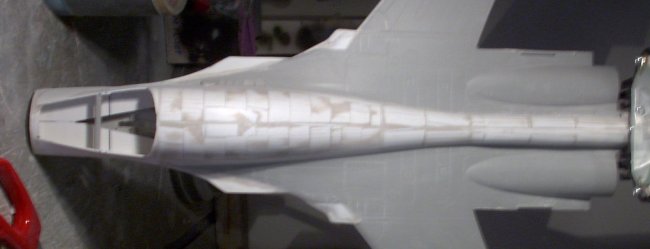

First of all....it took two months (intensive work, nearly everyday) to build this plane!!! The next few pictures will show you how I did it.  The first picture on the right shows my reference drawing. I did this by myself using  autoCAD,...of course with a little help: http://win.www.airwar.ru/other/draw/su34.html   First I cut the old frontcockpit off the Su-33, next I cut the new nose in a 1mm plastic sheet and bring it in position. Then I cut the new and bigger gearbays and the new wingbase.  Next I formed the new neck with plasticframes (picture 2 and 3).

Click on image below to see larger image

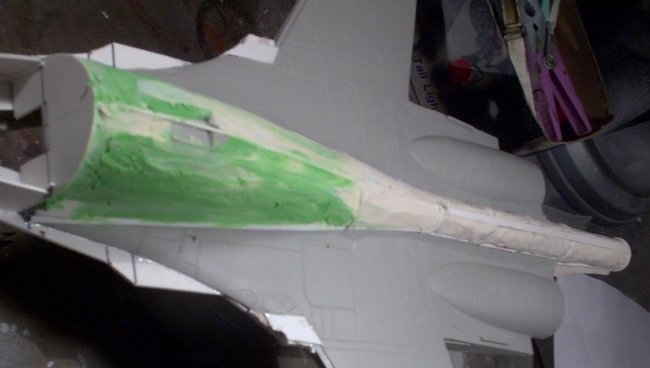

  Then I charge the interstice with plasticine (green and white stuff in picture 4). I brought this plasticine in the correct form and then I covered it with 1 cm plasticstrips (picture 5).

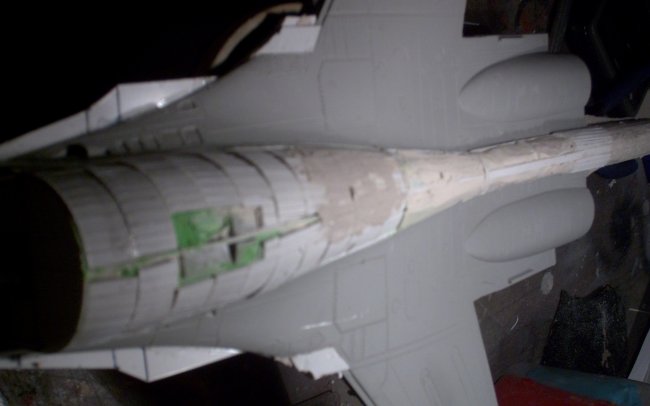

  Next I charge the gaps with  a mixture of filler and aceton-glue ( picture 6 and 7).

Click on images below to see larger images

...and then came the big work: with sandpaper, I brought the hole new fuselage in the correct form, and this took  about 3 weeks !!!!!

  Next part was the air intake (picture 8). There was "only" the bottom, the lips and of course the inside to reshape. I also did additional air intakes, two per unit, inside, and a lower overflow gap.

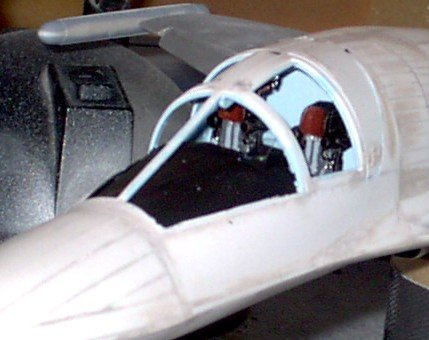

  The cockpit I did, except the K-36 ejection seats from Pavla, by myself....also the canopy frames (picture 9, 10 and 11).

 Click on images below to see larger images

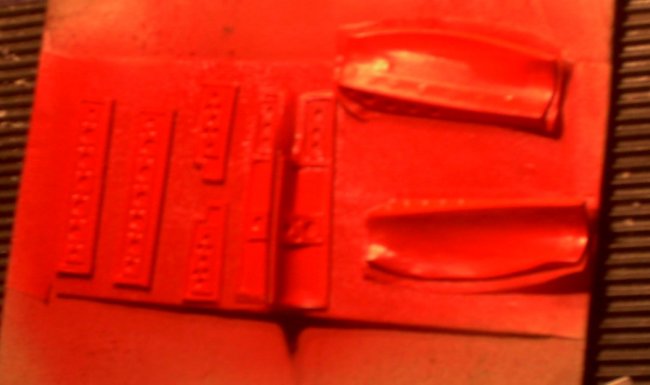

  In picture 12 you can see the model before I painted it.  In picture 13 and 14 you can see the all the small parts, like wapons, main- and frontgear, gearbay doors, flaps and so on....

  The gear and the gearbaydoors I did also by myself. This was a relatively easy job, except the big main gearbay doors: therefore I took the front of an old F-105 fuel tank.

Click on images below to see larger images

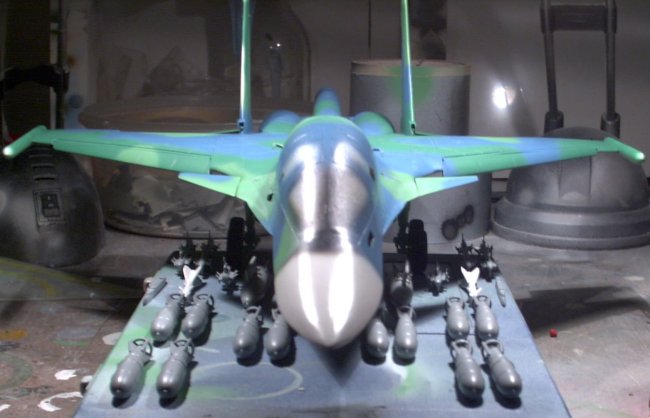

The last picture shows the plane nearly finished, but more in part two....

Armin
